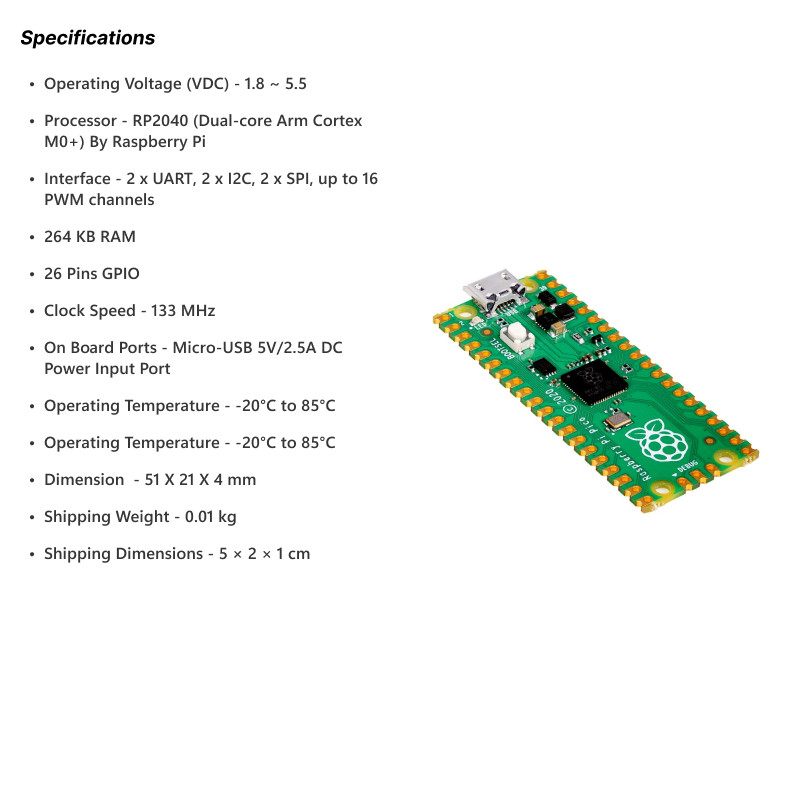

Raspberry Pi Pico
Reference: 894292
Condition: New product
Delivery by: Jun 11 2026
Manufacturer: Raspberry Pi
- RP2040 microcontroller chip designed by Raspberry Pi
- Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of onboard Flash memory
- The castellated module allows soldering directly to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB

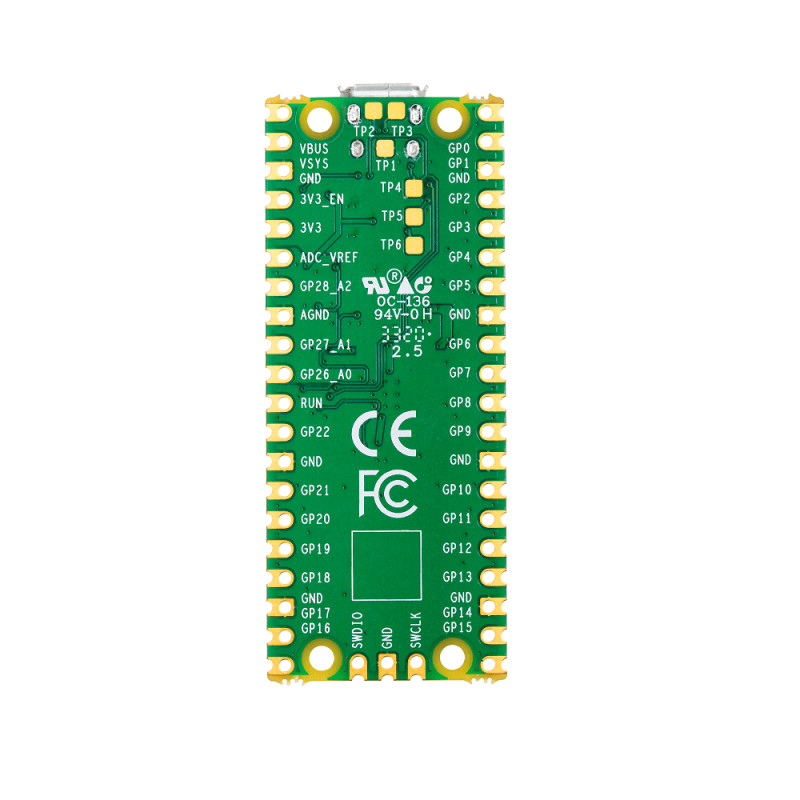

- 26 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Onboard temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
50 Units In Stock
More info
| Item Type: |
Development Board |
|---|---|
| Model: |
Pi Pico |
| Model Name: |
Raspberry Pi PICO |
| Operating Voltage (VDC): |
1.8 ~ 5.5 |
| Processor |
RP2040 (Dual-core Arm Cortex M0+) By Raspberry Pi |
| Interface: |
2 x UART, 2 x I2C, 2 x SPI, up to 16 PWM channels |
| RAM: |
264 KB |
| GPIO |
26 Pins |
| Clock Speed |
133 MHz |
| On Board Ports |
Micro-USB 5V/2.5A DC Power Input Port |
| Operating Temperature (°C): |
-20 to 85 |
| Length (mm): |
51 |
| Width (mm): |
21 |
| Height (mm): |
4 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 5 × 2 × 1 cm |
